hAP ax S with RouterOS L4, International version

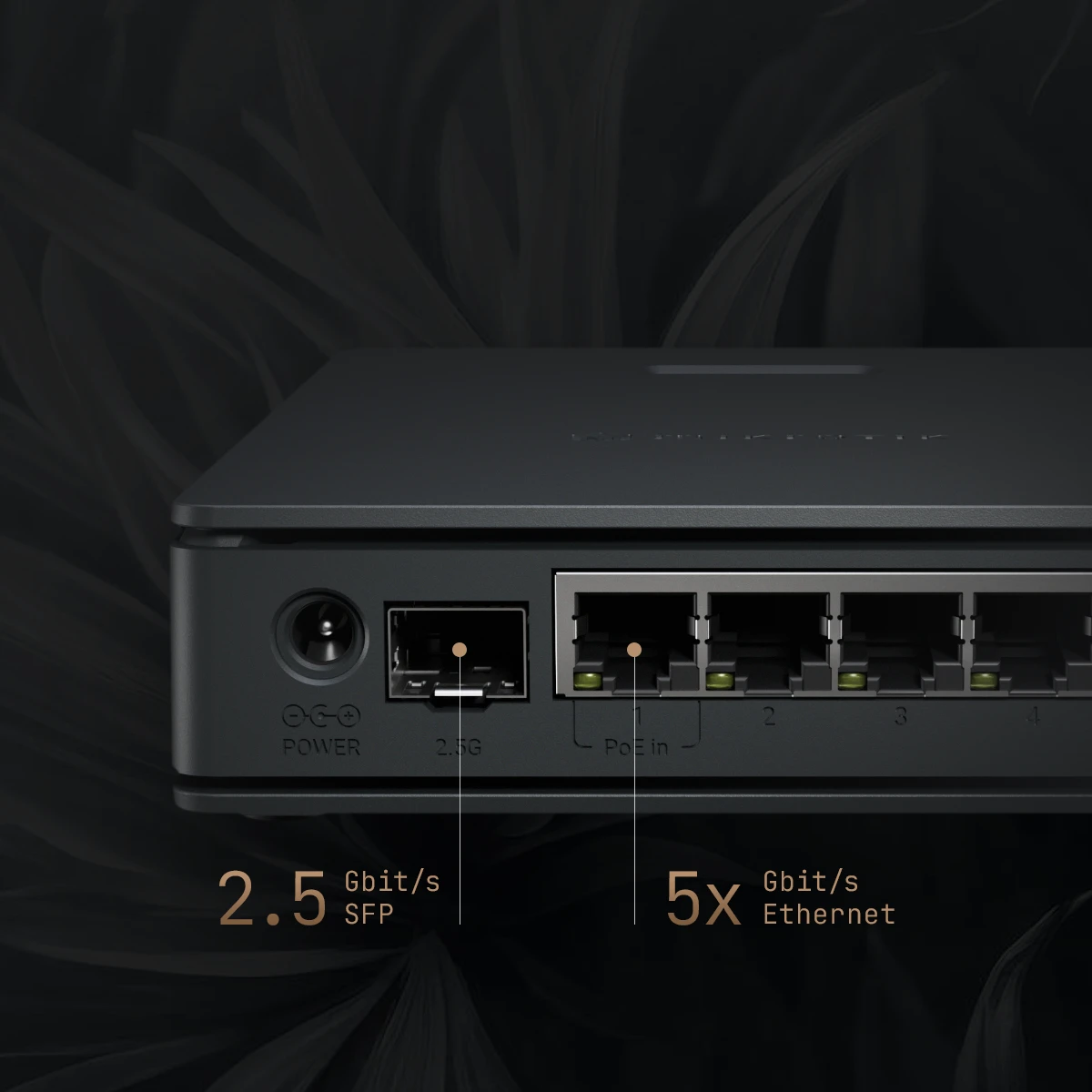

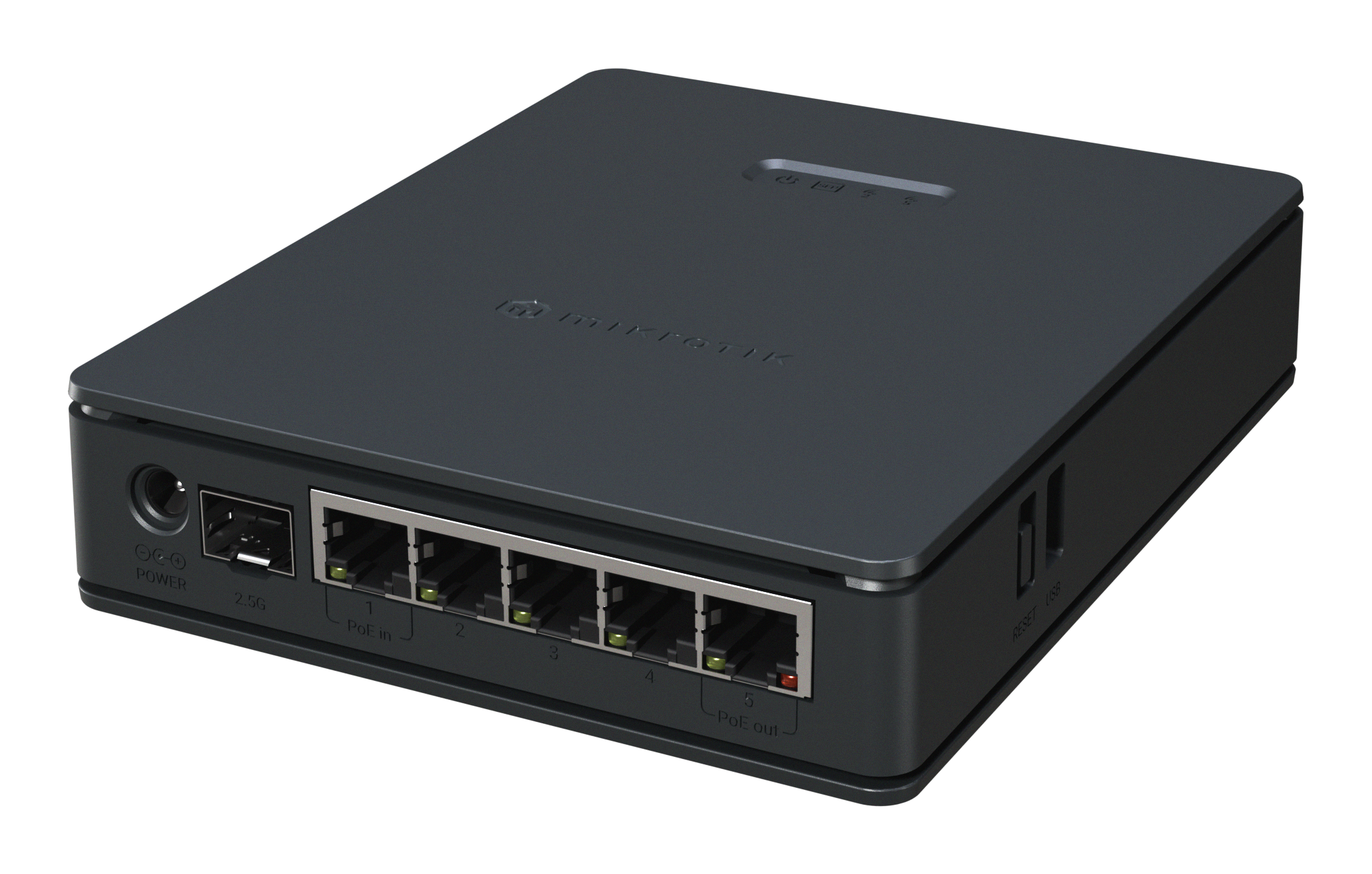

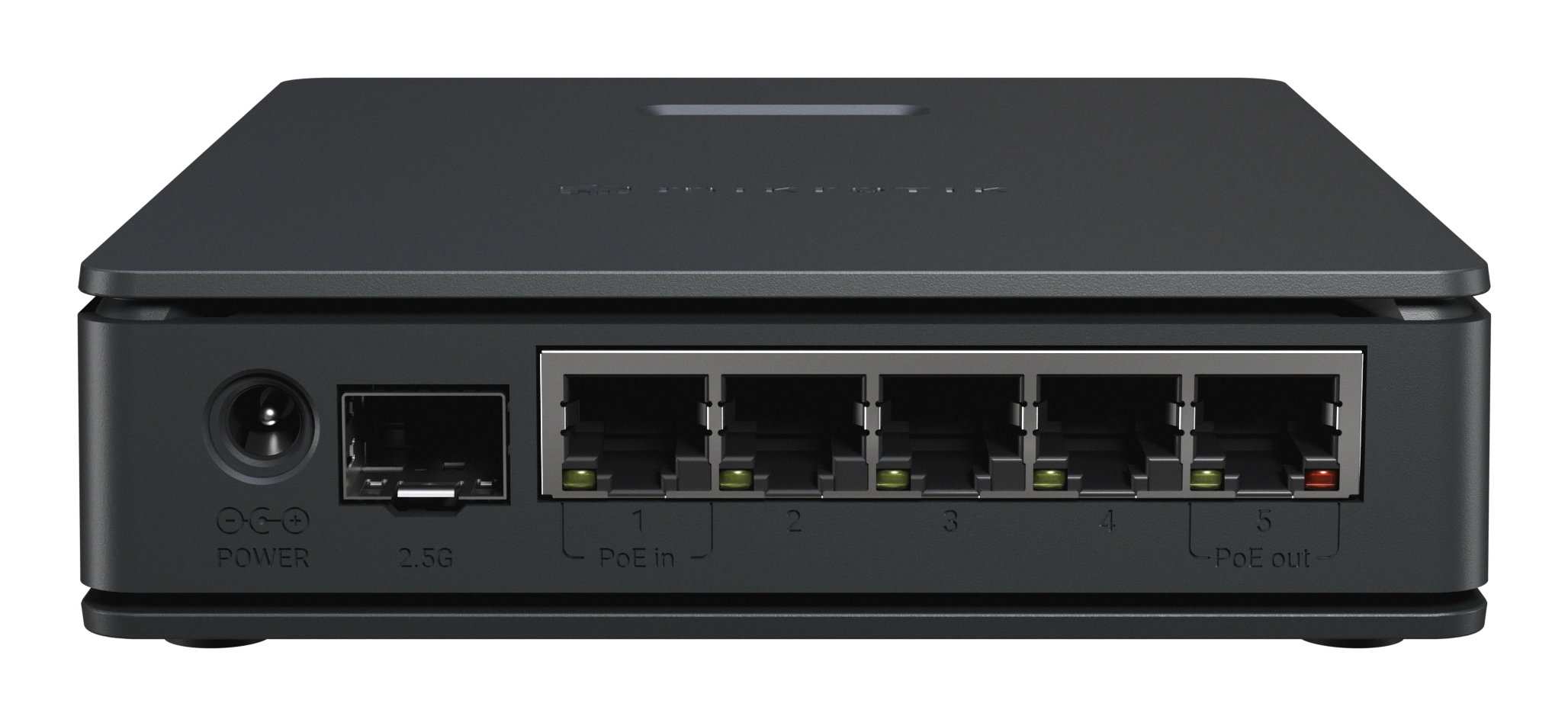

The hAP ax S is MikroTik’s most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.

Triple-chain 5 GHz	2.5G SFP Port	Wi-Fi 6 radio (Dual-Band)
5 × Gigabit Ethernet	PoE-in + PoE-out	RouterOS v7
Dual-Core ARM CPU

Meet the new hAP ax S

Our most cost-effective Wi-Fi 6 access point yet

It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box!

Triple-chain 5 GHz:

The key to stable, gigabit-class Wi-Fi

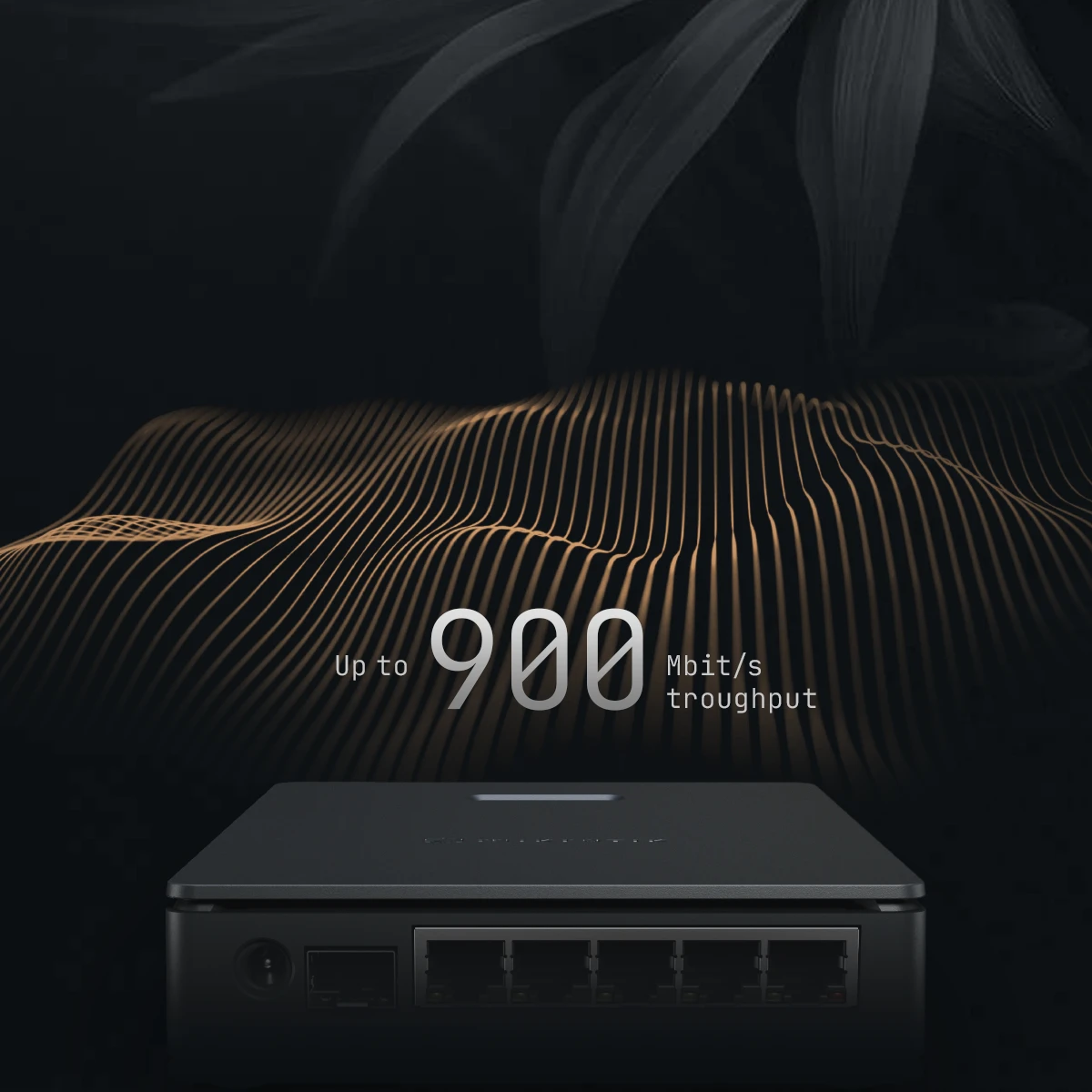

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.

It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!

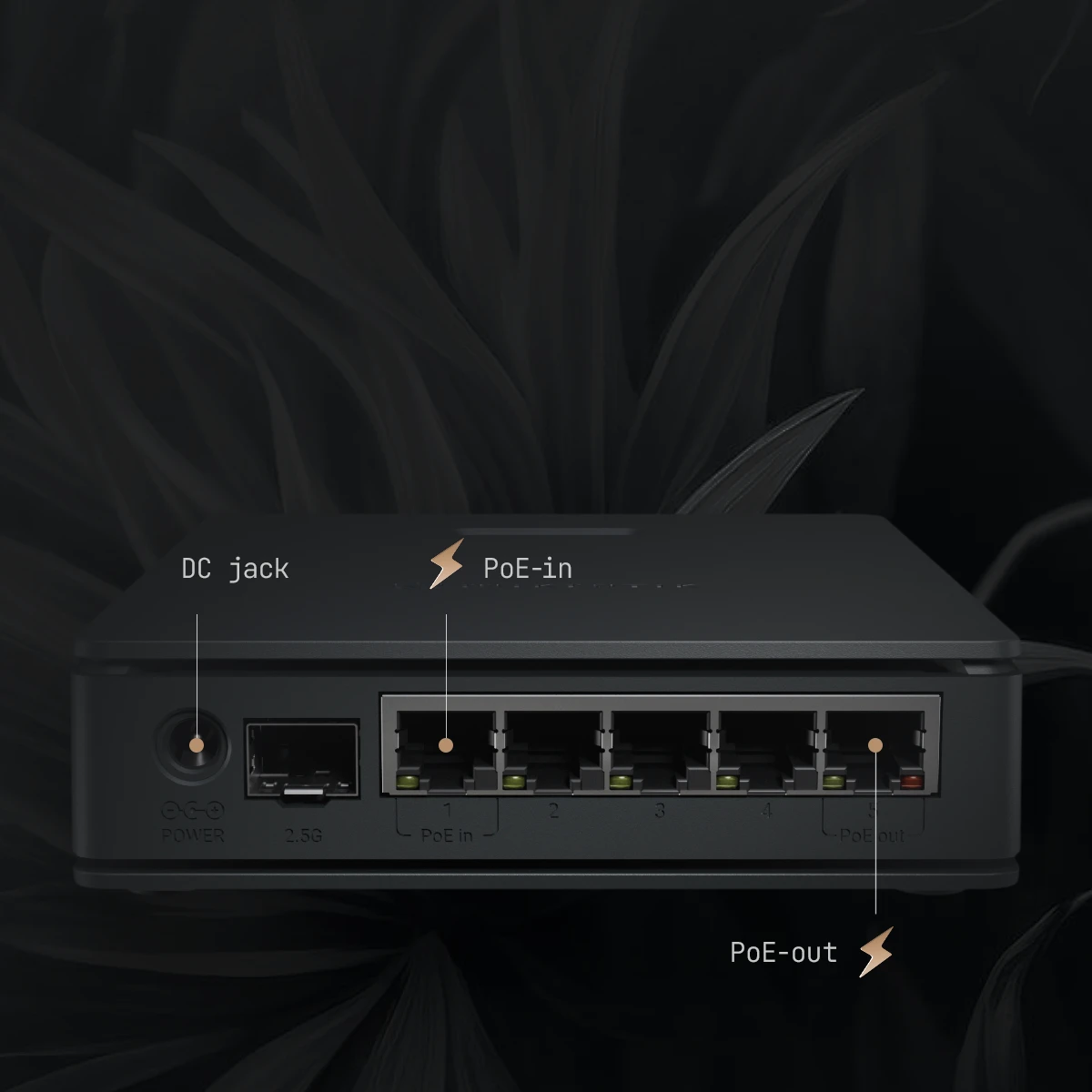

Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.

Your network, your rules

RouterOS v7

Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexible networking software on the market.

Free with all the features

In the age of growing data security and privacy challenges, RouterOS gives you complete control – with no subscriptions, no upsells, no locked features. Whether you’re configuring your first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7 grows with you.

Limitless possibilities

VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities are endless. For example, you can easily isolate IoT devices into separate subnets to protect your home network from unwanted access via the smart fridge or those flashy LED light hubs.

Technical Specification

Product code: E62iUGS-2axD5axT
Architecture: ARM 32bit
CPU: EN7562CT
CPU core count: 2
CPU nominal frequency: 950 MHz
CPU Threads count: 2
Switch chip model: EN7523
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100’000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Wireless capabilities

Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 5.5
Wireless 2.4 GHz chip model: MT7916
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 2400 Mbit/s
Wireless 5 GHz Number of chains: 3
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 6.5
Wireless 5 GHz chip model: MT7976
Wireless 5 GHz generation: Wi-Fi 6
WiFi speed: AX3000

Ethernet

10/100/1000 Ethernet ports: 5
Number of 1G Ethernet ports with PoE-out: 1

Fiber

SFP ports: 1 (2.5G supported)

Peripherals

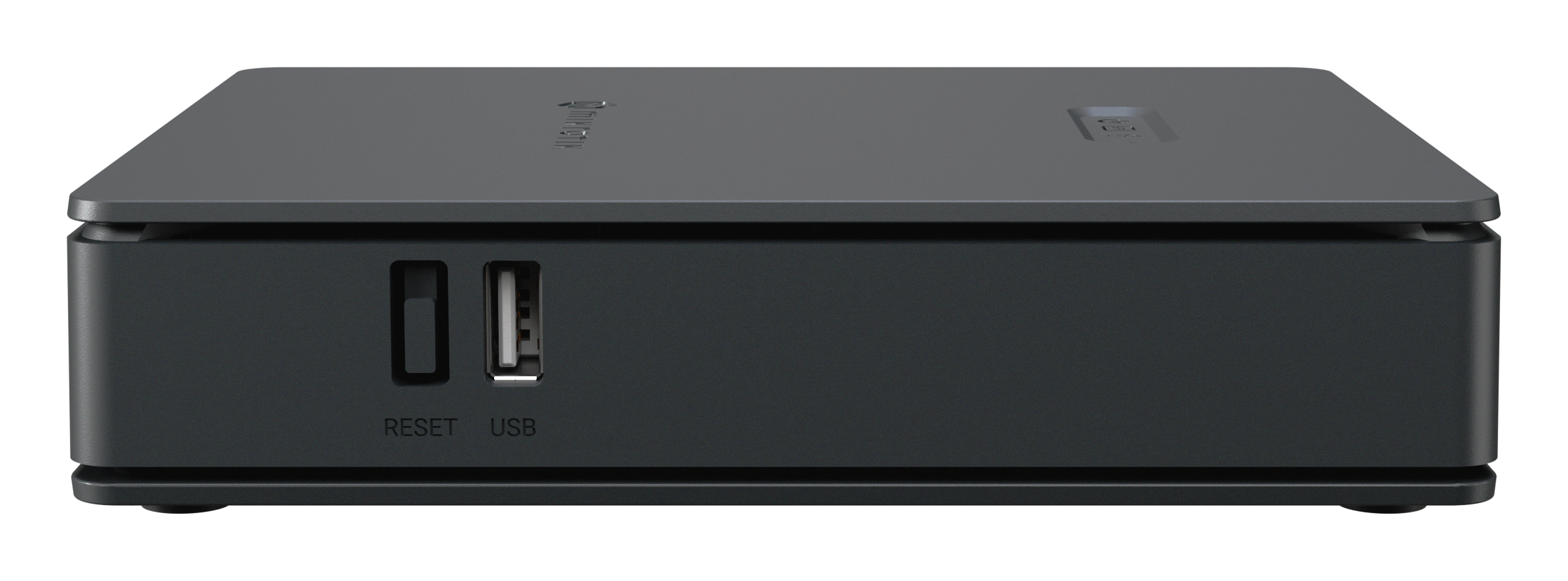

Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Powering

Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 34 W
Max power consumption without attachments: 11 W
PoE in: Passive PoE
Cooling type: Passive
PoE in input Voltage: 18-28 V

PoE-out

PoE-out ports: Ether 5
PoE out: Passive PoE
Low voltage PoE-Out current limit: 0.6 A
Max total out (A): 0.6 A
Total output current: 0.6
Total output power1: 6.8

Certification & Approvals

Certification: CE, FCC, IC, EAC, ROHS
IP: 20

Other

CPU temperature monitor: Yes

Included parts

24V 1.5A power adapter

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary, and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from the date of purchase.

Wireless Test Results – 2.4 GHz

Rate	Transmit (dBm)	Receive Sensitivity (dBm)
1 MBit/s	24	-100
11 MBit/s	24	-94
6 MBit/s	23	-96
54 MBit/s	21	-80
MCS0	22	-96
MCS7	20	-75
MCS9	19	-70
MCS11	15	-67

Wireless Test Results – 5 GHz

Rate	Transmit (dBm)	Receive Sensitivity (dBm)
6 MBit/s	23	-96
54 MBit/s	21	-81
MCS0	23	-96
MCS7	20	-77
MCS9	20	-72
MCS11	18	-69

Ethernet Test Results

Mode	Configuration	1518 byte	512 byte	64 byte
Bridging	none (fast path)	4132.4 Mbps	1593.5 Mbps	219 Mbps
Bridging	25 bridge filter rules	2315.1 Mbps	806.8 Mbps	105.5 Mbps
Routing	none (fast path)	3646.6 Mbps	1394.7 Mbps	186.1 Mbps
Routing	25 simple queues	2102.3 Mbps	713.8 Mbps	93.5 Mbps
Routing	25 IP filter rules	1430.3 Mbps	498.1 Mbps	63.6 Mbps

IPsec Test Results

Mode	Configuration	1400 byte	512 byte	64 byte
Single tunnel	AES-128-CBC + SHA1	351.7 Mbps	142.5 Mbps	20.2 Mbps
256 tunnels	AES-128-CBC + SHA1	188.2 Mbps	72.1 Mbps	10.1 Mbps
256 tunnels	AES-128-CBC + SHA256	189.3 Mbps	73.3 Mbps	10.2 Mbps
256 tunnels	AES-256-CBC + SHA1	188.2 Mbps	72.1 Mbps	10.2 Mbps
256 tunnels	AES-256-CBC + SHA256	189.3 Mbps	73.3 Mbps	10.3 Mbps
