LtAP LTE7 wireless kit
The new LtAP LTE7 wireless kit takes everything people love about LtAP – the rugged, weatherproof case, built-in GPS, extreme power flexibility, and miniPCIe expansion options – and adds our latest LTE Category 7 modem for a huge real-world improvement!
Higher speed, stability, and throughput are not the only benefits of the new modem. It comes with expanded frequency support, including Band 32 for better performance in congested areas and during roaming.
Same trusted LtAP form factor – no changes to installationor configuration. Just faster uploads, stronger ruralperformance, and a noticeably better price.
Perfect for logistics, transport & tracking

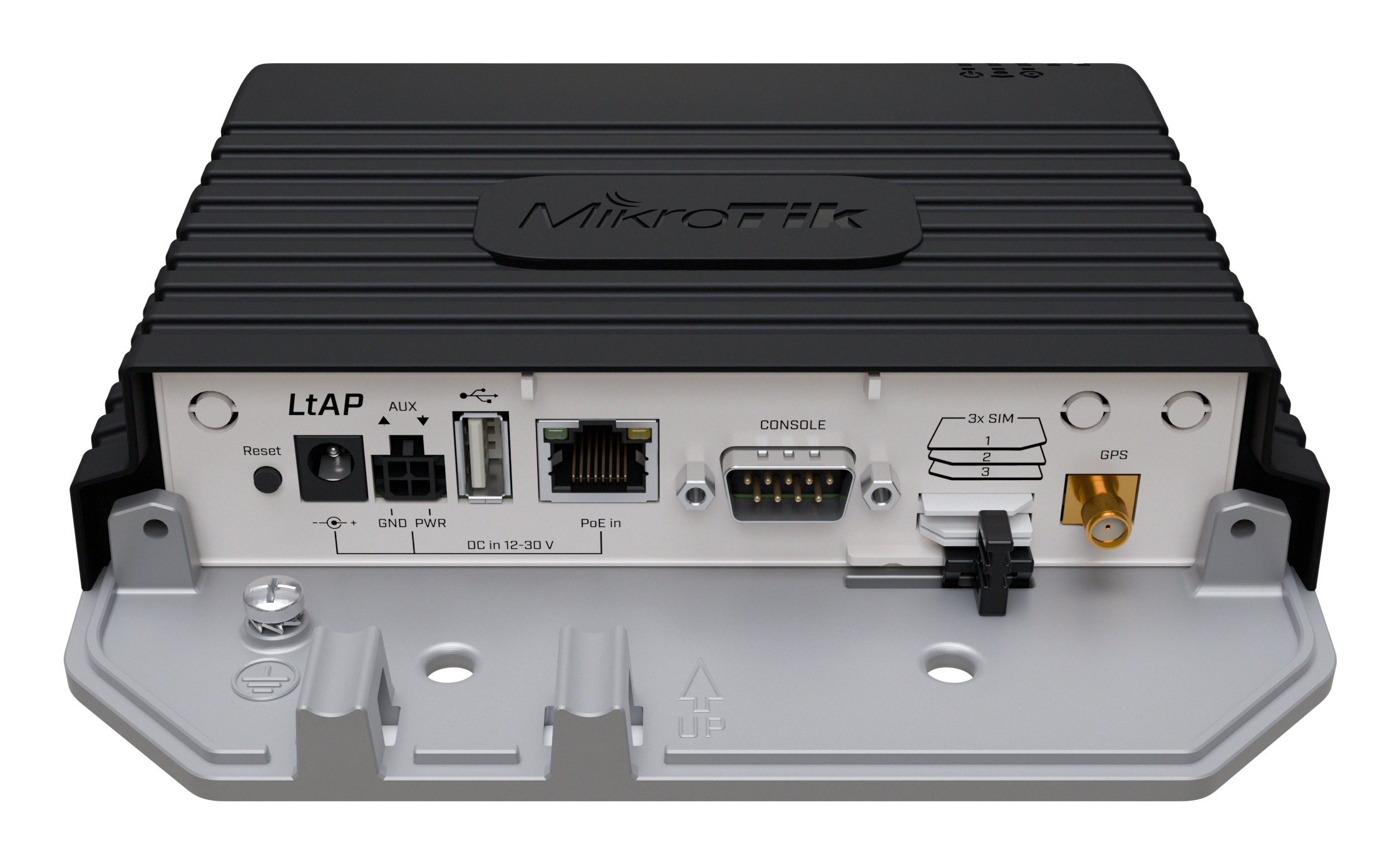

Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes the LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.
Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attention- grabbing than traditional routers.
The virtue of versatility
LtAP is designed to run in nearly any environment. It supports a DC jack, Passive PoE-in, and an Automotive power connector!
Users have even run the device from power banks in the field. And because LtAP includes two miniPCIe slots, you can expand it with a second LTE modem, a 5 GHz interface, or other add-ons – building exactly the setup you need.
Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!
Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, and custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job.
Specification
- Product code: LtAP-2HnD&R11e-LTE7
- Architecture: MMIPS
- CPU: MT7621AT
- CPU core count: 2
- CPU nominal frequency: 880 MHz
- CPU Threads count: 4
- RouterOS license: 4
- Operating System: RouterOS v7
- Size of RAM: 128 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200’000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
Powering
- Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
- DC jack input Voltage: 12-30 V
- Automotive input Voltage: 12-27 V
- Max power consumption: 24 W
- Max power consumption without attachments: 12 W
- PoE in: Passive PoE
- Cooling type: Passive
- PoE in input Voltage: 12-30 V
Mobile
- 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL: 2×2
- MIMO UL: 1×1
- LTE FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
- LTE TDD bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC: 35312597
Wireless specifications
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz Number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 2.5
- Wireless 2.4 GHz chip model: AR9382
- Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports: 1
Peripherals
- Number of SIM slots: 3 Modem (Mini SIM)
- MiniPCI-e slots: 2
- Serial console port: RS232
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
Other
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- GNSS standards: GPS
Certification & Approvals
- Certification: CE, EAC, ROHS
- IP54
Included parts
24V 1.2A power adapter
K-67 fastening set
0.35m 4-pin Automotive adapter cable
