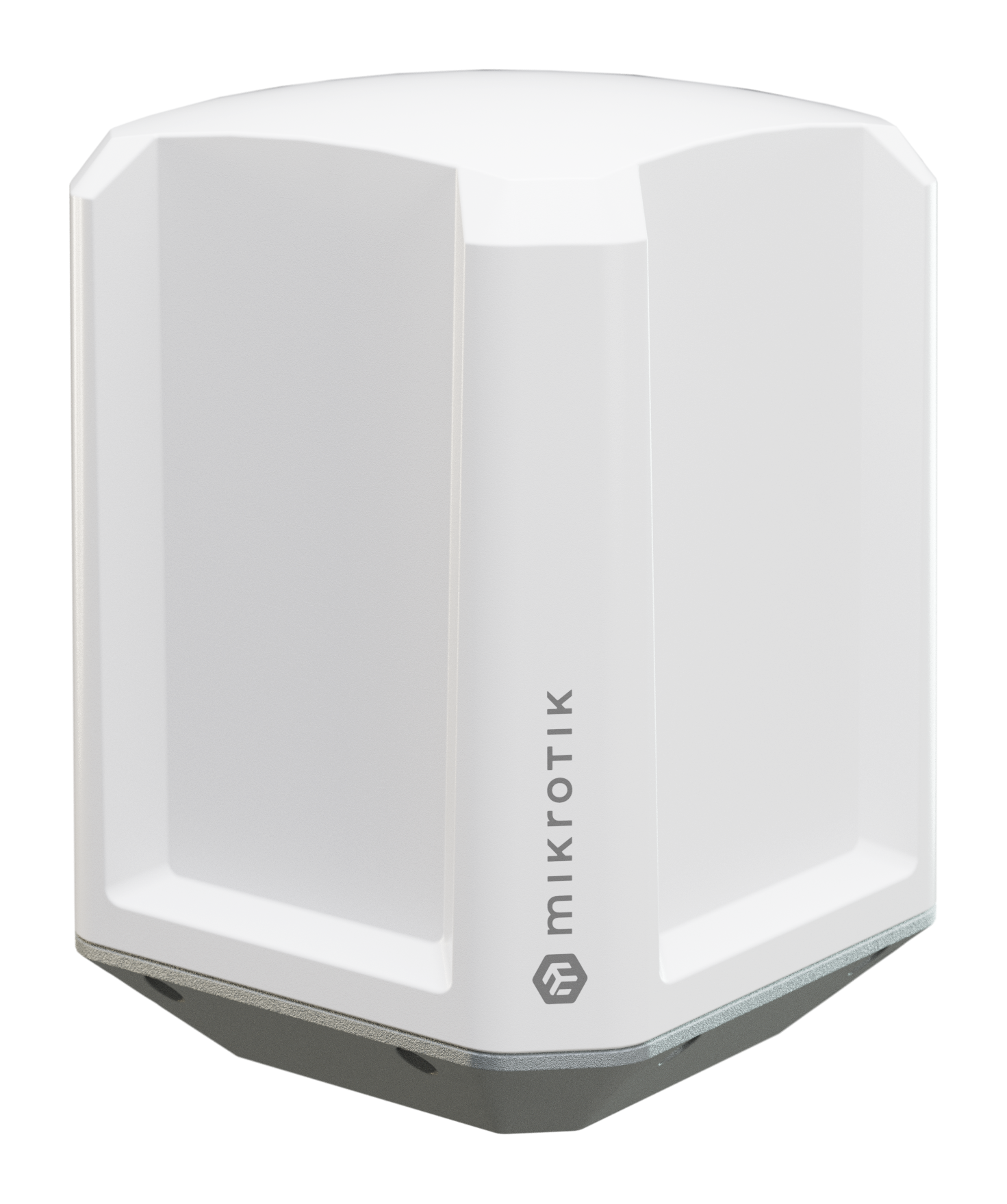

MikroTik LAMP 5G R16 Outdoor 5G Router with Integrated LTE and PoE
The MikroTik LAMP 5G R16 is a high-performance outdoor 5G router designed for reliable wireless connectivity in demanding environments. Built around the Quectel RG520F-EU modem, this unit delivers Sub-6GHz 5G speeds alongside LTE fallback, making it suitable for fixed wireless access, remote site connectivity, and industrial IoT deployments.
- Integrated Quectel RG520F-EU 5G modem supporting Sub-6GHz bands

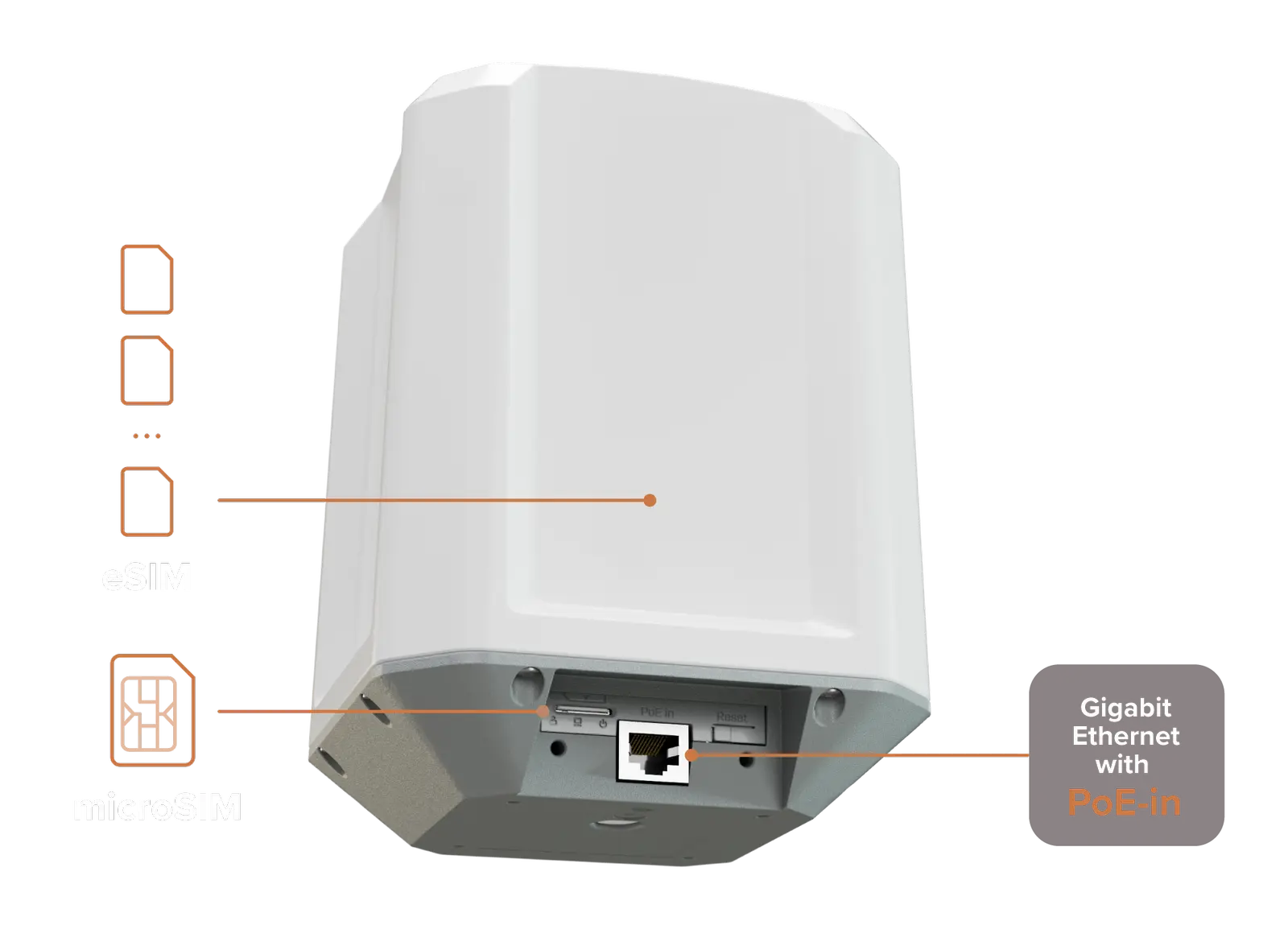

- Multiple eSIM profiles & MikroTik Connectivity
- LTE Cat-20 fallback for continuous connectivity in areas with partial 5G coverage
- Cutting-edge omnidirectional antennas
- Weatherproof outdoor enclosure rated for harsh environments
-
EN 60945 maritime compliant

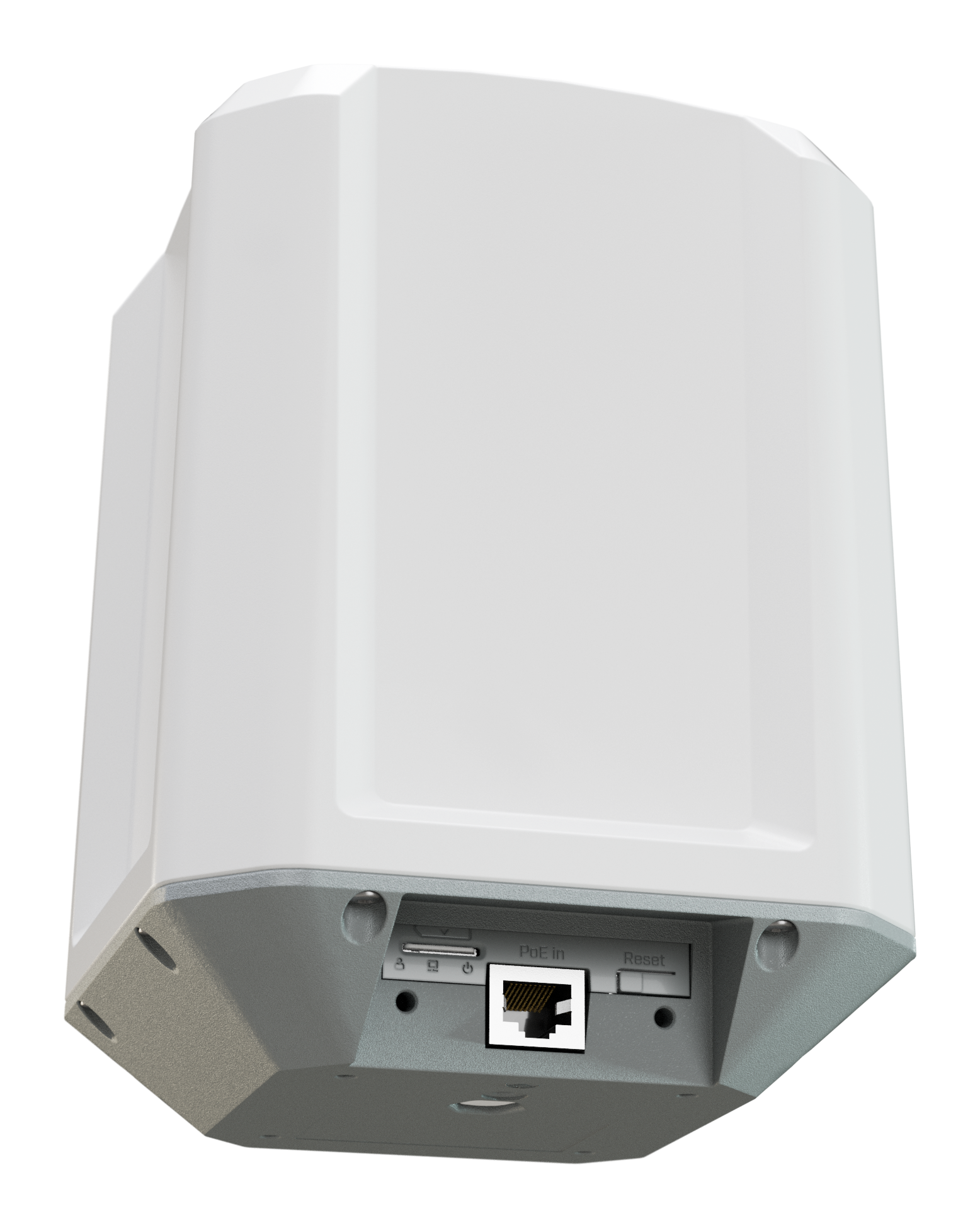

- Powered via passive PoE for simplified cable management and flexible mounting
- RouterOS v7 provides advanced routing, firewall, and VPN capabilities
- A SIM card slot for carrier redundancy and failover
- Compact form factor suitable for pole or wall mounting
- Low latency 5G connectivity supports voice, video, and real-time applications
- Compatible with MikroTik WinBox and WebFig management interfaces
Technical Specifications
| Attribute | Value |
|---|---|
| SKU | LAMPGM&RG520F-EU |
| Architecture | ARM 65-bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| Max power consumption without attachments | 10 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-56 V |
| 5G Modem | Quectel RG520F-EU |
| 5G NSA FDD bands | 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz) |
| 5G NSA TDD bands | 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz) |
| TAC | 86945405 |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz) |
| LTE Category | 20 (DL: 2.0 Gbps; UL: 200 Mbps) |
| MIMO DL | 4×4 |
| MIMO UL | 2×2 |
| LTE FDD bands | 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz) |
| SIM Slots | 1 Micro SIM |
| Operating System | RouterOS v7 |
| Power Input | Passive PoE |
| Enclosure | Outdoor weatherproof, IP 67, EN 60945 maritime compliant |

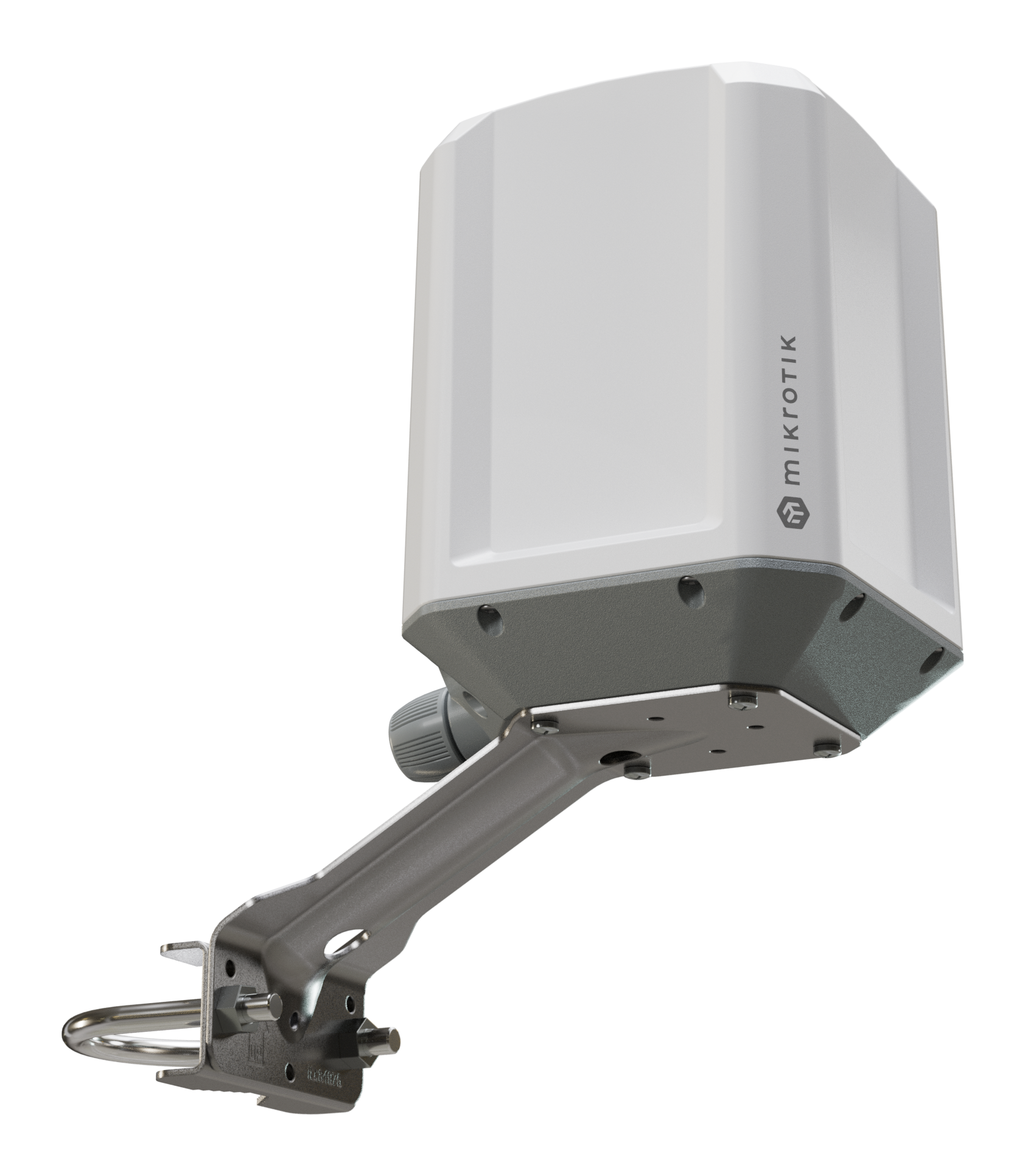

| Mounting | Pole or wall mount |
| Region | EU (European frequency bands) |
The LAMP 5G R16 suits network administrators and IT professionals who need a dependable outdoor 5G gateway without complex cabling. RouterOS v7 support ensures access to enterprise-grade routing features including BGP, OSPF, and robust firewall rules straight out of the box.
