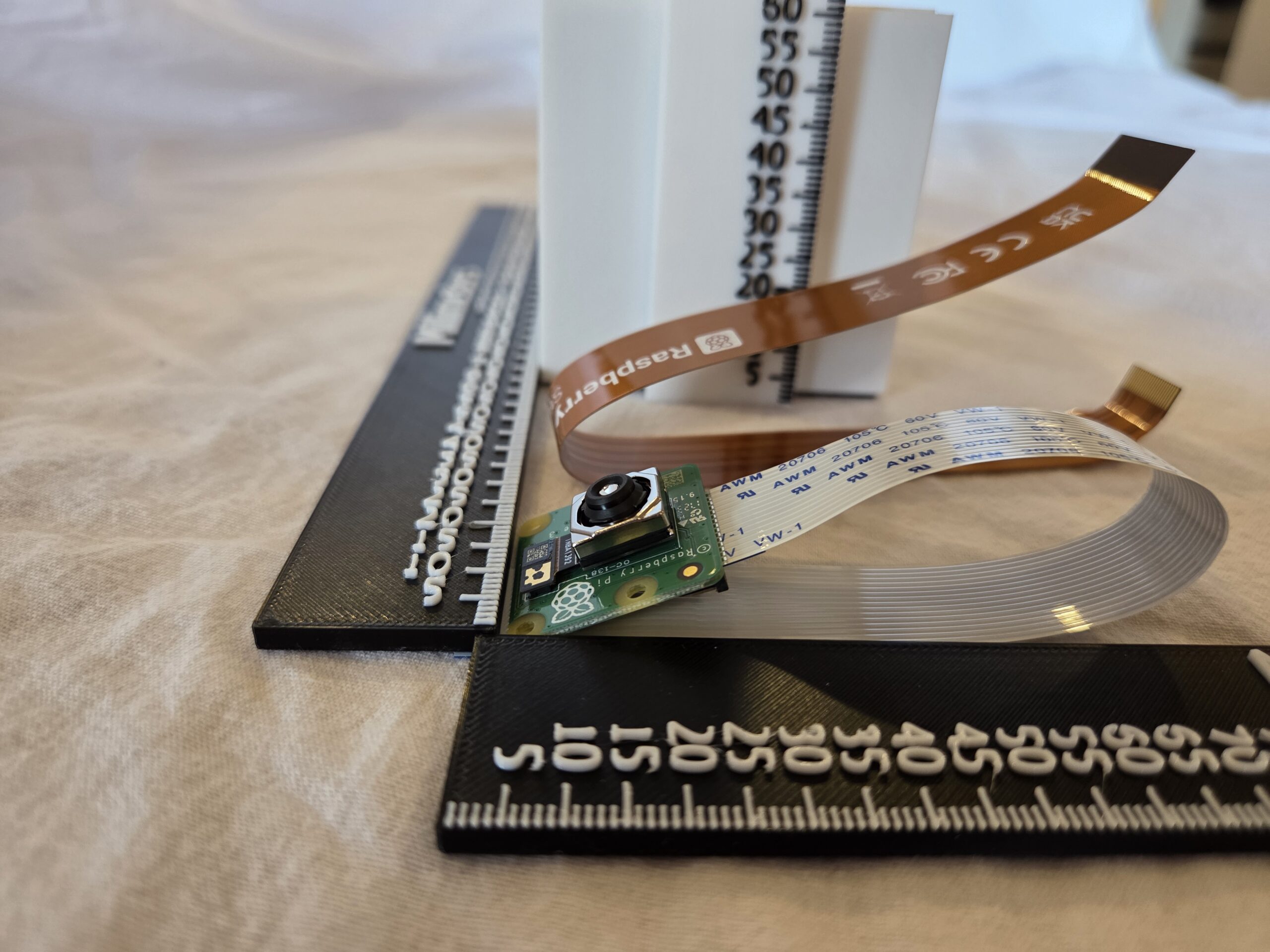

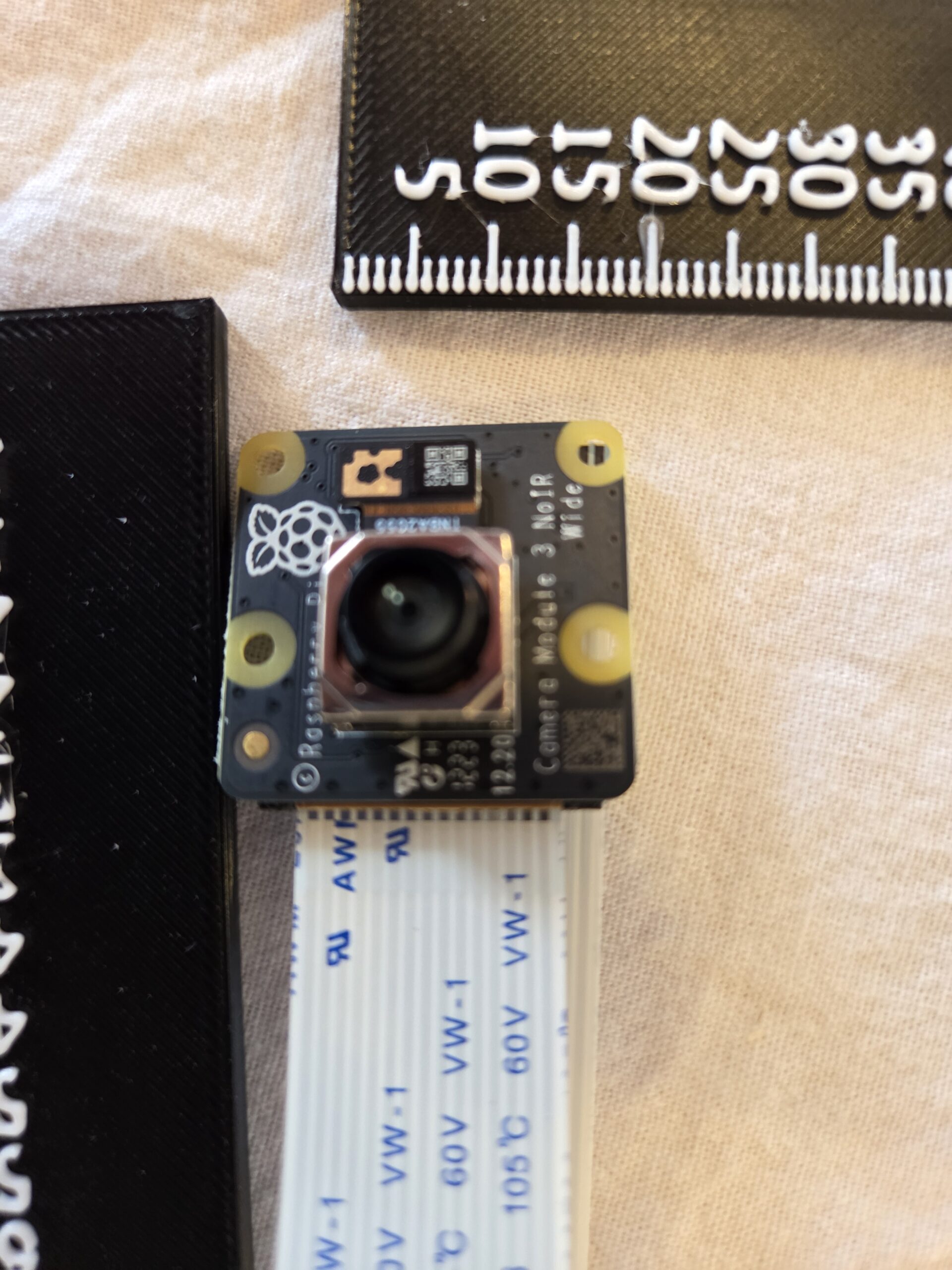

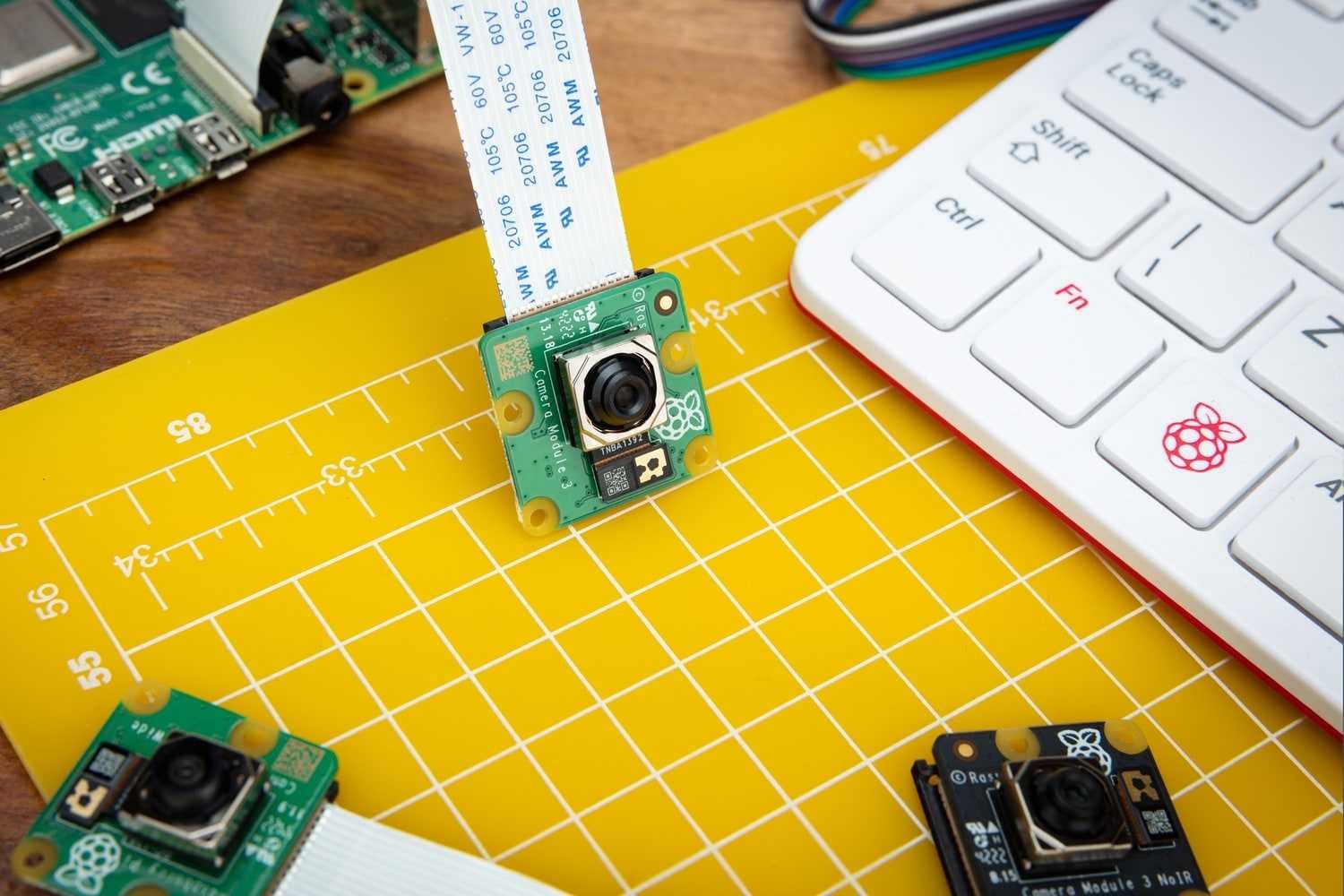

Raspberry Pi Camera Module 3
The Raspberry Pi Camera Module 3 is the latest official camera solution from Raspberry Pi, engineered for makers, developers, and educators who demand reliable, high-quality imaging in compact projects. Built around the Sony IMX708 sensor, this module delivers a significant upgrade over previous generations with native autofocus, HDR capability, and improved low-light performance.
Key Features
- 12-megapixel Sony IMX708 CMOS image sensor for sharp, detailed captures
- Phase Detection Autofocus (PDAF) for fast, accurate subject focusing
- High Dynamic Range (HDR) mode for balanced exposure in challenging lighting
- Supports video recording up to 1080p at 50fps and 4K at 10fps
- Compatible with all Raspberry Pi boards featuring a CSI camera connector
- Works with Raspberry Pi OS camera stack and libcamera framework

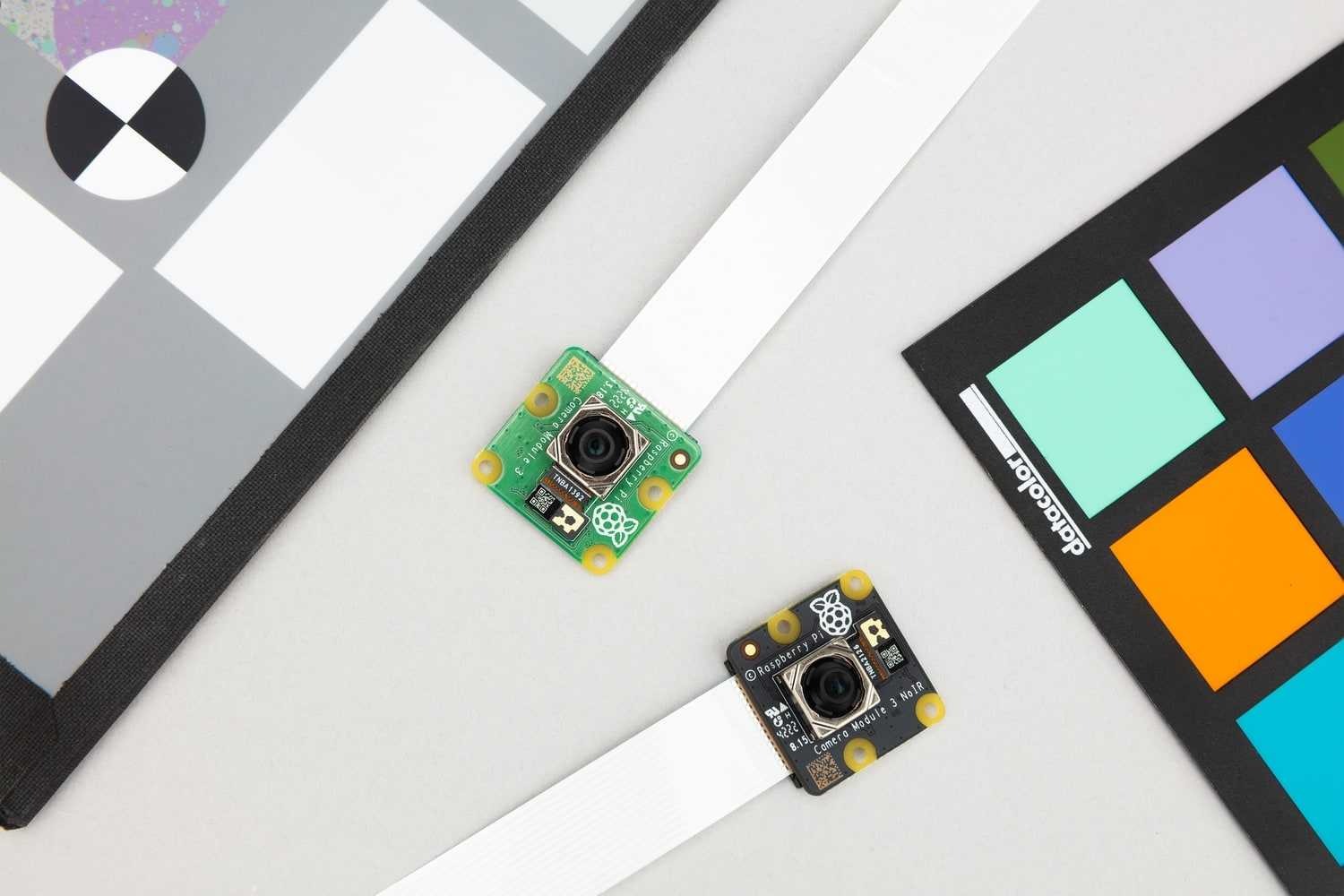

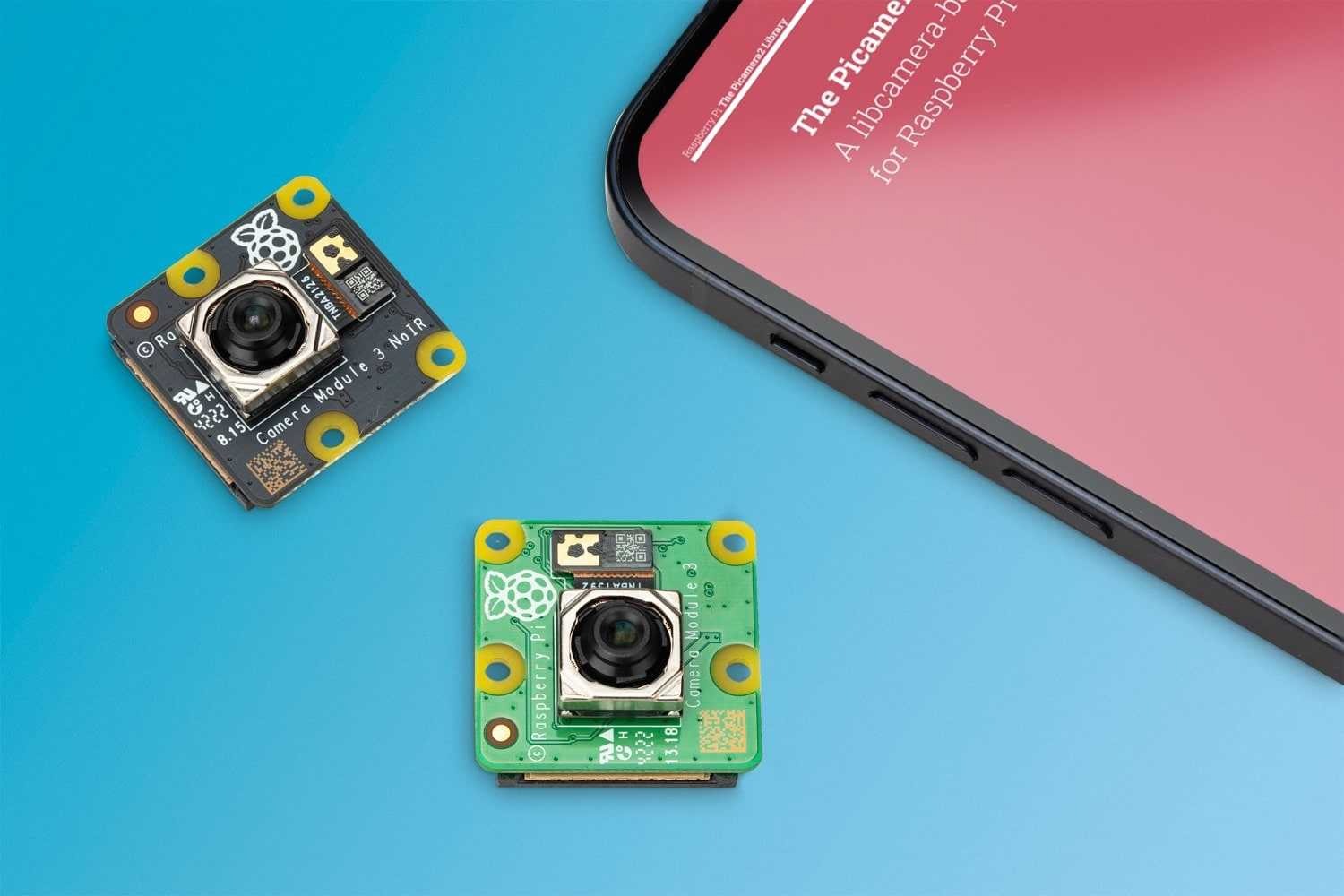

- Available in standard and wide-angle variants
- Compact form factor for integration into enclosures and HATs
Technical Specifications
| Attribute | Value |
|---|---|
| Image Sensor | Sony IMX708 |
| Resolution | 12 Megapixels |
| Sensor Size | 7.4mm diagonal |
| Pixel Size | 1.4µm x 1.4µm |
| Autofocus System | Phase Detection Autofocus (PDAF) |
| Focus Range | 10cm to infinity |
| HDR Support | Yes |
| Max Video Resolution | 4K at 10fps, 1080p at 50fps, 720p at 120fps |
| Still Image Output | 4608 x 2592 pixels |
| Interface | MIPI CSI-2 |
| Lens Field of View | 66° (standard) / 102° (wide) |

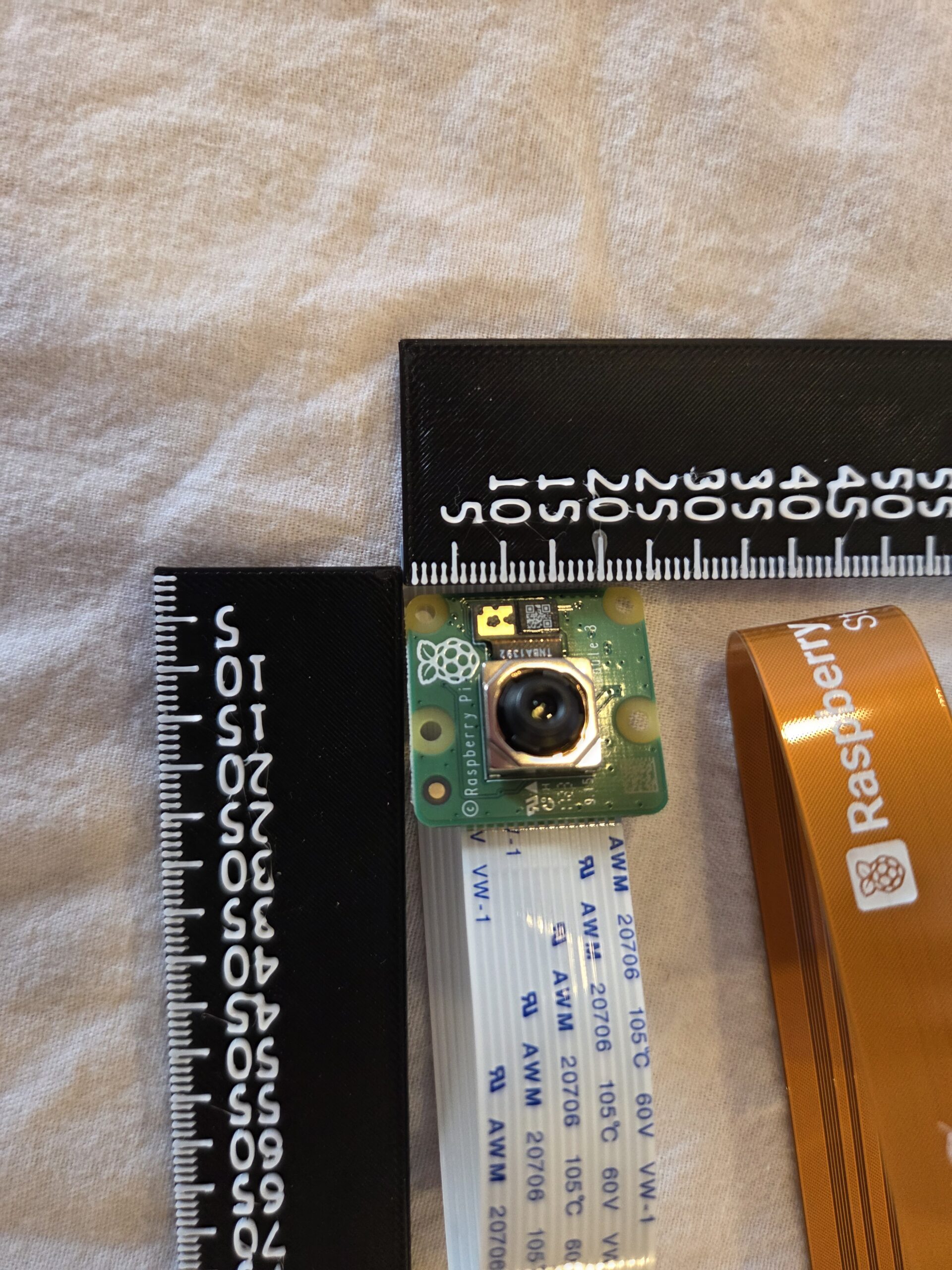

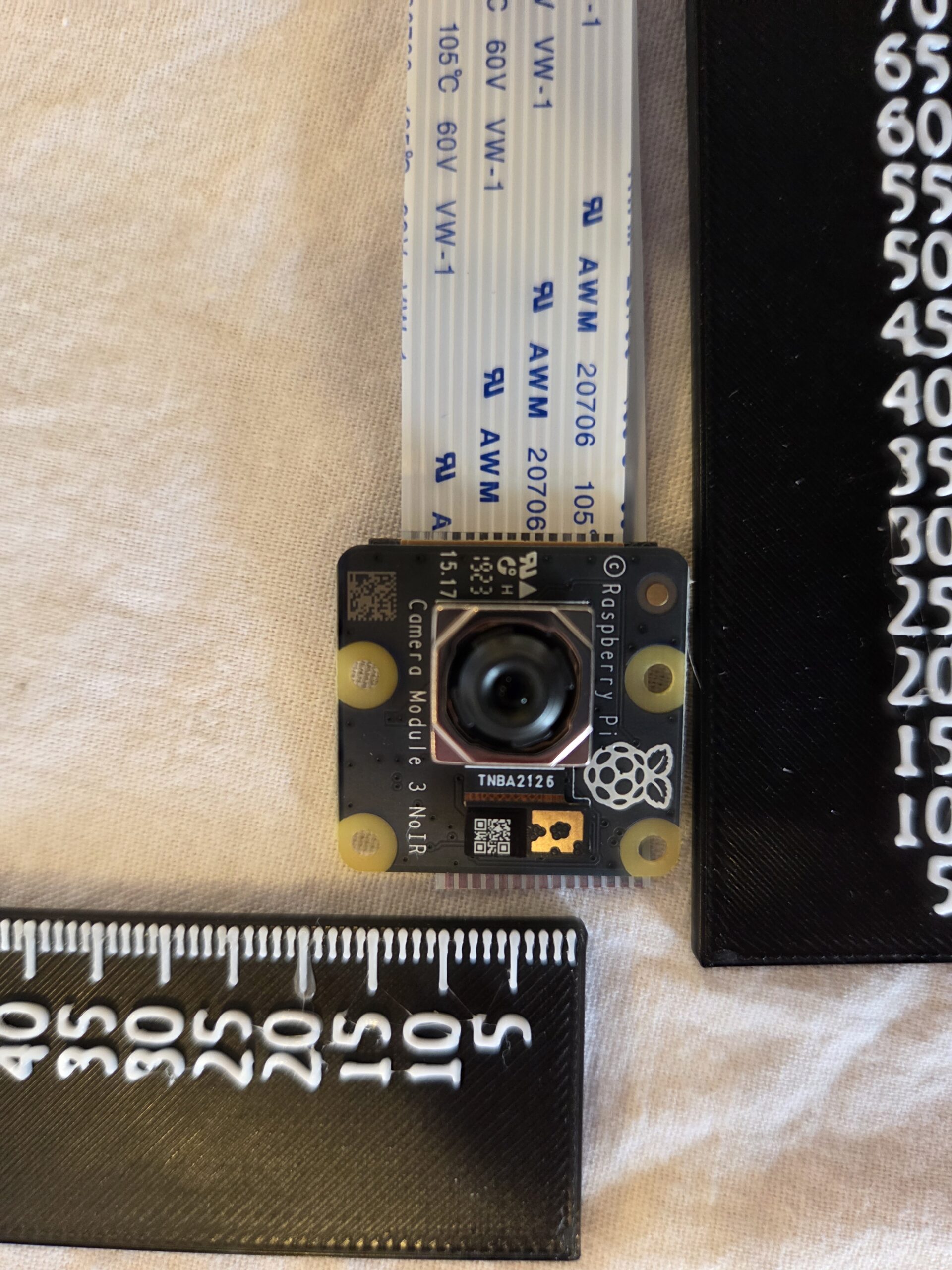

| Board Dimensions | 25mm x 24mm |
| Operating Temperature | 0°C to 50°C |
| Compatibility | All Raspberry Pi models with CSI connector |
Who Is This For?
The Camera Module 3 suits a wide range of use cases. Hobbyists can use it for time-lapse photography and wildlife monitoring. Developers building computer vision applications benefit from the autofocus and HDR modes. Educators and students gain access to a professional-grade imaging platform at an accessible price point. The module integrates seamlessly with the Raspberry Pi ecosystem and is supported by the open-source libcamera library.
Whether you are prototyping a security camera, building a smart doorbell, or experimenting with machine learning image recognition, the Raspberry Pi Camera Module 3 provides the performance and flexibility to support your project from concept to completion.
